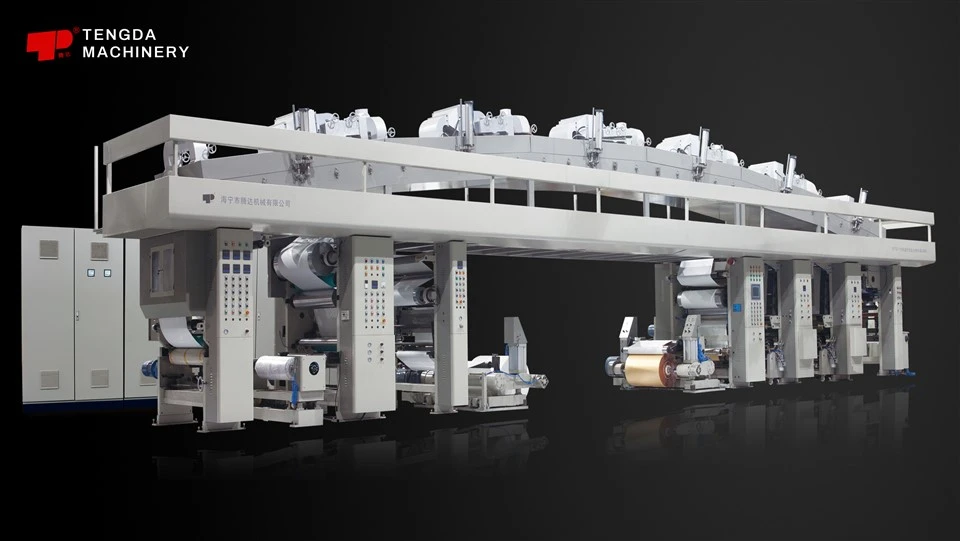

Aluminum Foil Paper High Speed Lamination Coating and Stripping Machine

Inner Liner | 600-1300mm
Substrate: Paper (inner liner base paper 30-120gsm / card paper 80-300gsm)
film (aluminum foil 0.005-0.025mm / PET/thin film 0.012-0.025mm)

Send Inquiry

Description

SFTB Series Lamination, Coating and Stripping Machine

Inner Liner | 600-1300mm

Parameters

Max unwind width	600-1300mm
The effective width	680-1380mm
Max unwind&rewind dia	Inner liner base paper: Φ1200mm Card paper: Φ1600mm Aluminum foil / thin film: Φ500mm
Max running speed	180m/min

Details

-Applications: Back-coating, wet lamination, printing, coating, stripping, embossing processes to produce inner liner and other laminated paper.

-One machine with multiple processes.

-Profinet/EtherCAT control system: Advanced PLC, User-friendly HMI; Busbar power supply, energy-saving and reliable.

-Fully Synchronously controlled by servo drivers, converters and motors; Full-closed-loop tension control by floating rollers.

-Extra smooth and flat surface, no warping, no wrinkles, no scratches.

-Remote diagnosis and maintenance service.

FAQ

Q: What is the order and production process like?

A: We begin by thoroughly communicating with the customer to understand their requirements and tailor the most optimal machine configuration. Once the detailed technical proposal is confirmed, we proceed with signing the contract and commence production after receiving the advance payment. After production is completed, customers are welcome to visit our company for the Factory Acceptance Test (FAT) to ensure compliance with specifications. Following the FAT acceptance, the machines are packaged and shipped to the customer's site. Our company dispatches engineers to the customer's location for installation and commissioning.

Q: Do you participate in exhibitions?

A: Yes, we actively participate in various Tobacco and Printing & Packaging exhibitions such as WT, Intertabac, Drupa, All in Print, CHINAPLAS, and more. We have booths at these exhibitions.
