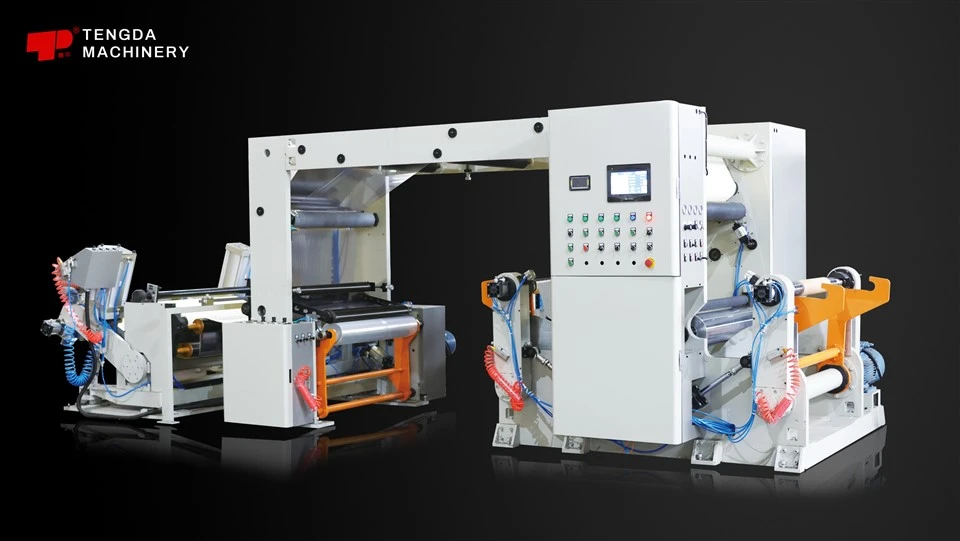

Tipping Paper Gantry Double Shaft Stripping and Slitting Machine
Double-shaft | High Speed | 600-1000mm
Substrate: 30-100 gsm ( cigarette tipping paper, inner liner, soft pack)
80-300gsm (cigarette card paper)
Description
SFQ Series Gantry Double-shaft Stripping and Slitting Machine
Double-shaft | High Speed | 600-1000mm
Parameters
|
Substrate |
30-100 gsm ( cigarette tipping paper, inner liner, soft pack) 80-300gsm (cigarette card paper) |
|
Max. unwind paper dia |
Φ1200mm/Φ1600mm |
|
Max stripped film rewind dia |
Φ600mm |
|
Max paper rewind dia |
Φ800mm |
|
Unwind width |
600-1020mm |
|
Max slitting speed |
300m/min |
|
Max stripping speed |
200m/min |
|
Slitting alignment accuracy |
≤±0.10mm |
|
Surface flatness |
≤±0.15mm |
Details
-Profinet/EtherCAT control system: advanced PLC, servo driver&converter control; -User-friendly HMI; Busbar power supply, energy-saving and reliable.
-Unwinding tension auto-controlled by floating rollers and frequency controlled motors.
-Rewinding tension control by frequency controlled motors
-Precise web guiding system (EPC/LPC system).
-Pneumatic swing arm for roll loading/unloading at unwind and rewind station.
-Remote diagnosis and maintenance service.
